Overview

File system errors may cause a LightRules Appliance (LRA) to be unable to boot properly. When a LRA to be unable to boot properly, error messages will appear on a monitor such as "warning mounting unchecked fs, running e2fsck is recommended" and/or "welcome to emergency mode."

Running fsck will often resolve the file system issues and allow the LRA to boot properly.

Setup

Emergency mode only occurs in scenarios where the LRA is unable to boot and the LightRules web application is unaccessible.  Connecting a VGA monitor, keyboard and mouse directly to the LRA will allow for further troubleshooting and potentially display the root@lightrules command line.

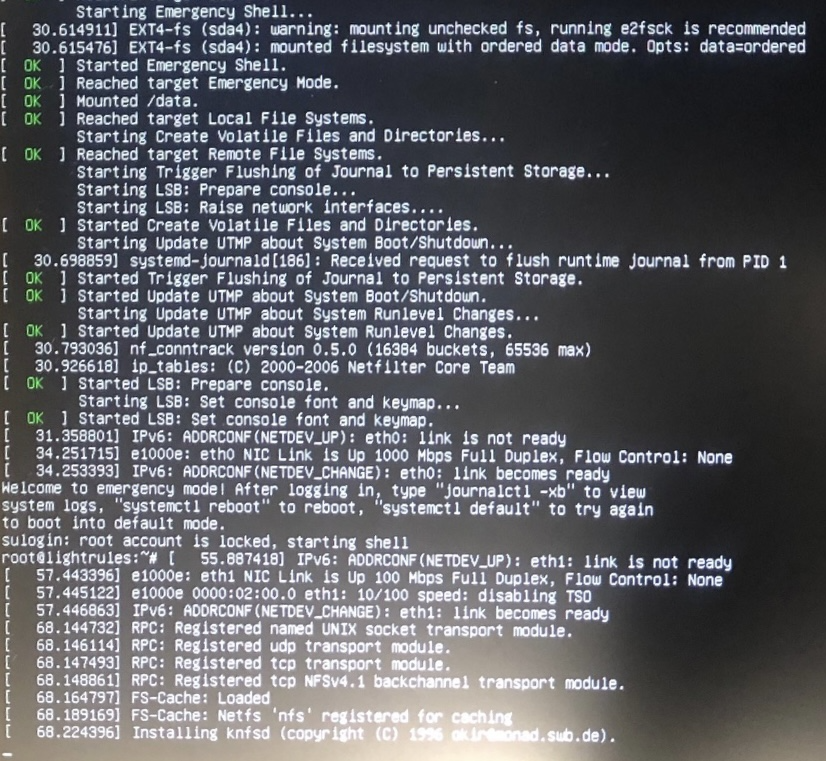

For reference, the Emergency mode screen will often appear similar to below before [enter] is pressed to access the root@lightrules command line:

Process

Sometimes rebooting the LRA per the below steps will resolve the issue:
  1. When in Emergency mode you can access a command prompt by pressing [enter].
  2. At the command prompt type:  shutdown -h now
  3. Press [enter] to start the shutdown sequence.
  4. Once the LRA is off, press the power button to turn the LRA back on.
If shutdown -h now does not resolve the issue, then you can run fsck to attempt to repair the filesystem:
  1. When in Emergency mode you can access a command prompt by pressing [enter].
  2. At the root@lightrules command prompt type: fdisk -l
  3. fdisk will inform you what your partitions are. Most likely it will be  /dev/sda[1-4]
  4. Run fsck on each partition per the below commands. Press [enter] after each command before proceeding to the next command. If the umount command notes that sda[1-4] is "not mounted", that is not a problem. We wanted it to be "not mounted" :)
    1. umount /dev/sda1
    2. fsck -y /dev/sda1
    3. umount /dev/sda2
    4. fsck -y /dev/sda2
    5. umount /dev/sda3
    6. fsck -y /dev/sda3
    7. umount /dev/sda4
    8. fsck -y /dev/sda4
  5. After running fsck on all partitions, reboot the LRA
If fsck does not resolve the issue, please check that fsck was completed on the correct partition. If fsck was completed on the correct partition and the LRA is still unable to boot into the LightRules app, then the LRA has a hardware issue that is not resolvable using software commands.
